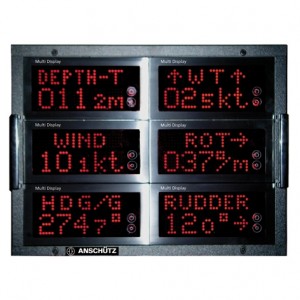

The Multi Display indicates a variety of parameters with integrated dimmer control for optimal adjustment of the brightness to the environmental conditions. It contains two rows of red-dotted matrix LED fields for various alphanumeric indications. The display mode can be changed easily during operation.

• Heading gyro, heading magnetic, heading steering command
• Water speed, bottom speed, depth
• Course-to-steer, course over ground
• Rudder angle , rate of turn
• Bearing to waypoint, distance to waypoint
• Cross track error
• Local time, UTC, revolution/minute
• Total miles, daily miles
• Wind direction, wind speed
• Air pressure, air temperature
• Relative humidity, dew point
• Water temperature
• Distance travelled through water

For more information concerning the latest version of the Raytheon Anschütz Multi Display – please download the brochure!

Multi Display(PDF)
